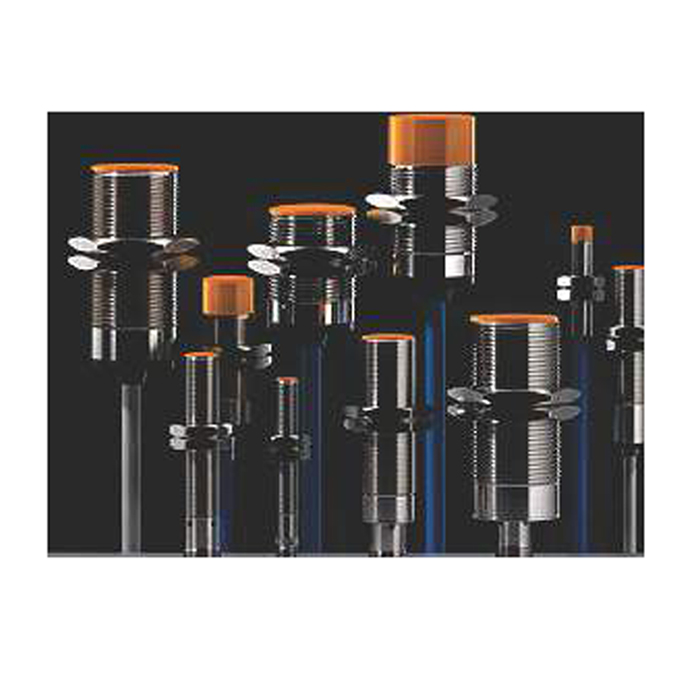

AC Inductive Proximity Switches

SPECIFICATIONS

  • Supply Voltage Nominal: 90 TO 230 V AC
  • Load Current: 200mA/500mA
  • Voltage Drop Across the switch - <8V
  • Minimum Load Curent - 5mA
  • Hysterisis: 15% max
  • Output Logic : No or NC
  • Switching Frequency - 15HZ
  • Working Temperature - 15 to +65 C
  • Protection Class IP67
  • Status Indication - THROUGH LED
  • Housing Material - NI Plated Brass
MODEL SIZE FLUSH MOUNT NON - FLUSH MOUNT RANGE
M 12 12 x 70 mm =   2 mm
M 12 12 x 70 mm   = 4 mm
M 18 18 x 80 mm =   5 mm
M 18 18 x 80 mm   = 8 mm
M 30 30 x 80 mm =   10 mm
M 30 30 x 80 mm   = 15 mm
